CT窗口设置对人工智能分类肺部病变结果的影响

程晓悦 吴晓华 郝优 贺文 李华 刘佳宝 曹邱婷

程晓悦, 吴晓华, 郝优, 等. CT窗口设置对人工智能分类肺部病变结果的影响[J]. CT理论与应用研究, 2023, 32(4): 515-522. DOI: 10.15953/j.ctta.2022.210
引用本文: 程晓悦, 吴晓华, 郝优, 等. CT窗口设置对人工智能分类肺部病变结果的影响[J]. CT理论与应用研究, 2023, 32(4): 515-522. DOI: 10.15953/j.ctta.2022.210
CHENG X Y, WU X H, HAO Y, et al. Effect of Computed Tomography Window Technique on the Results of Artificial Intelligence Classification of Lung Lesions[J]. CT Theory and Applications, 2023, 32(4): 515-522. DOI: 10.15953/j.ctta.2022.210. (in Chinese)
Citation: CHENG X Y, WU X H, HAO Y, et al. Effect of Computed Tomography Window Technique on the Results of Artificial Intelligence Classification of Lung Lesions[J]. CT Theory and Applications, 2023, 32(4): 515-522. DOI: 10.15953/j.ctta.2022.210. (in Chinese)

CT窗口设置对人工智能分类肺部病变结果的影响

doi: 10.15953/j.ctta.2022.210
基金项目: 国家中医药管理局中医药创新团队及人才支持计划(组织液循环网络(ZYYCXTD-D-202202));国家重点研发计划(复杂时变场景的物理仿真关键技术(2017YFB1002700));国家973项目(疏松结缔组织中的传递现象及艾灸等效应的模式化研究(2015CB554507));国家自然科学基金(图像不变性分析与应用(61379082));基于CT影像的肝脏肿瘤冷冻消融热传导数值模型与手术规划算法研究(6227012006))。
详细信息
    作者简介:

    程晓悦:女,博士,首都医科大学附属北京友谊医院放射科主治医师,主要从事影像诊断工作,E-mail:cxiaotu@163.com

    吴晓华:女,首都医科大学附属北京友谊医院放射科副主任医师,中国防痨协会多学科诊疗专业分会委员、北京医学会放射学分会感染学组委员,主要从事胸部影像诊断工作,E-mail:luckyemilyxh@aliyun.com

    通讯作者:

    女,首都医科大学附属北京友谊医院放射科副主任医师,中国防痨协会多学科诊疗专业分会委员、北京医学会放射学分会感染学组委员,主要从事胸部影像诊断工作,E-mail:luckyemilyxh@aliyun.com

  • 中图分类号: O  242;TP  391;R  814

Effect of Computed Tomography Window Technique on the Results of Artificial Intelligence Classification of Lung Lesions

  • 摘要: 目的:应用3种不同的3D CNN的算法及5种CT窗口设置,探讨CT窗技术对人工智能分类肺部病变结果的影响。方法:回顾性分析172例周围型肺癌及185例局灶性肺炎的胸部CT影像资料,选择ResNet、ResNext以及DenseNet 3种不同的3D CNN的算法将病变分为两组,并在每1种3D CNN算法处理过程中应用5种不同的CT窗口设置,包括肺窗(1500,-600),纵隔窗(350,40),自定义窗口1(SW1)(1000,40),自定义窗口2(SW2)(1000,-100),全窗(4096,1024),分别计算分类准确率及AUC结果,并进行ROC曲线的两两对比。结果:ResNet的平均分类准确率最低为纵隔窗85.732%,AUC值为0.871;平均分类准确率最高为全窗,达91.596%,AUC值为0.946。ResNext的平均分类准确率最低为纵隔窗81.528%,AUC值为0.814;平均分类准确率最高为全窗,达86.568%,AUC值为0.882。DenseNet的平均分类准确率最低为纵隔窗87.954%,AUC值为0.906;平均分类准确率最高为SW2,达93.274%,AUC值为0.951。应用medcalc将3种3D CNN的5种窗口下的ROC曲线进行了两两对比发现,纵隔窗与肺窗、纵隔窗与SW1、纵隔窗与SW2之间的AUC值比较均有统计学意义。结论:3种3D CNN的分类诊断效能差别不大;CT窗口设置对CNN分类肺部病变结果有影响,在纵隔窗设置下以上3种人工智能算法对该两类肺部病变的诊断效能最差。



  • 图  1  不同窗口设置时对病灶的显示不同:(a)~(e)左肺上叶周围型肺癌(腺癌);(f)~(j)右肺下叶局灶性肺炎

    (a)和(f)肺窗;(b)和(g)纵隔窗;(c)和(h)SW1;(d)和(i)SW2;(e)和(j)全窗

    Figure  1.  Different display of lesions in different windows: (a)~(e) is the same patient, diagnosed as peripheral lung cancer in the upper lobe of the left lung (pathological examination shows adenocarcinoma); (f)~(j) is the same patient, diagnosed as focal pneumonia in the lower lobe of the right lung

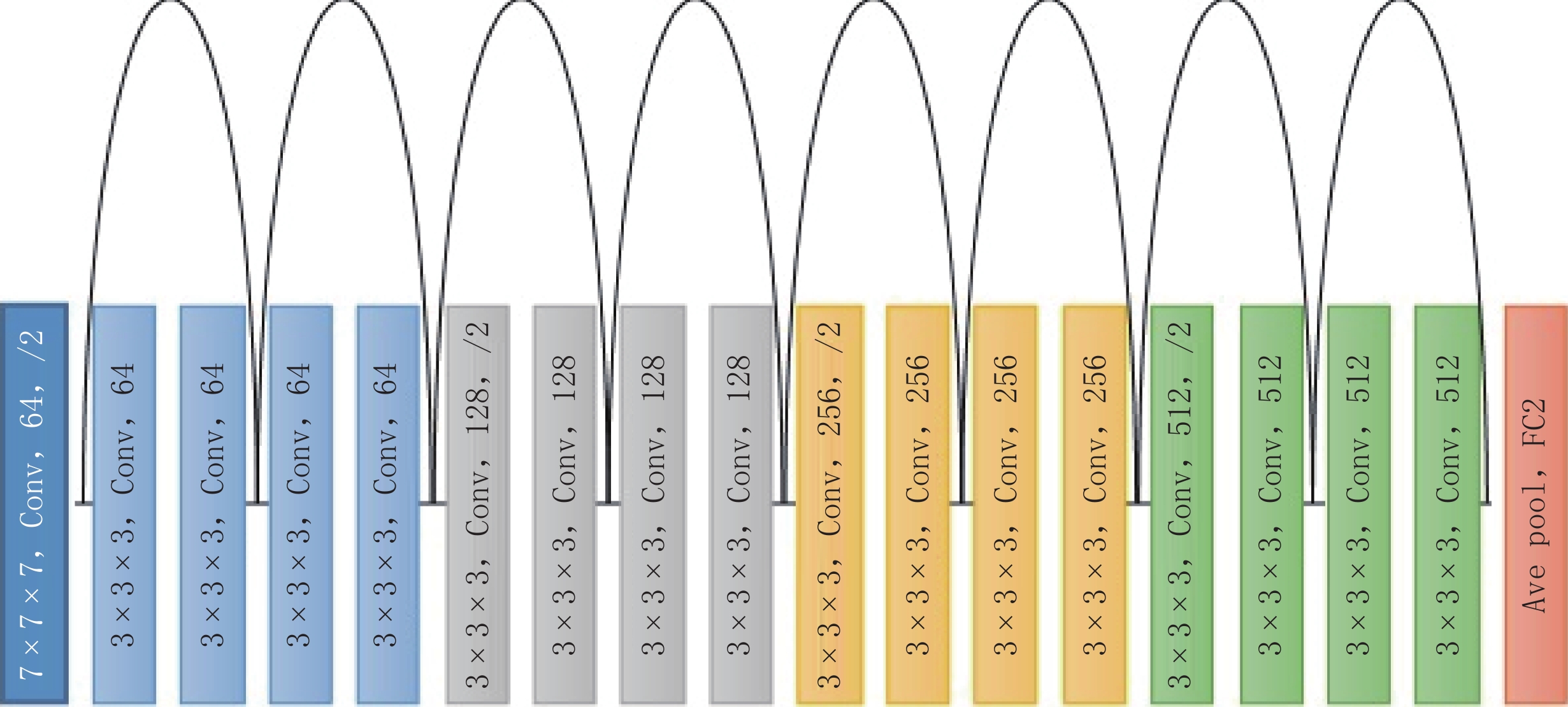

    图  2  3D ResNet网络构建

    主干使用18层的3D ResNet网络,在每个卷积块中,有1个卷积层(其参数在图中列出)、1个批标准化(Batch Normalization)层和1个ReLu激活层,图中的第1个参数“3×3×3”表示3D内核大小,第3个参数“64、128、256、512”表示通道数,最后1个参数“/2”表示步长为2的池层。

    Figure  2.  3D ResNet network design

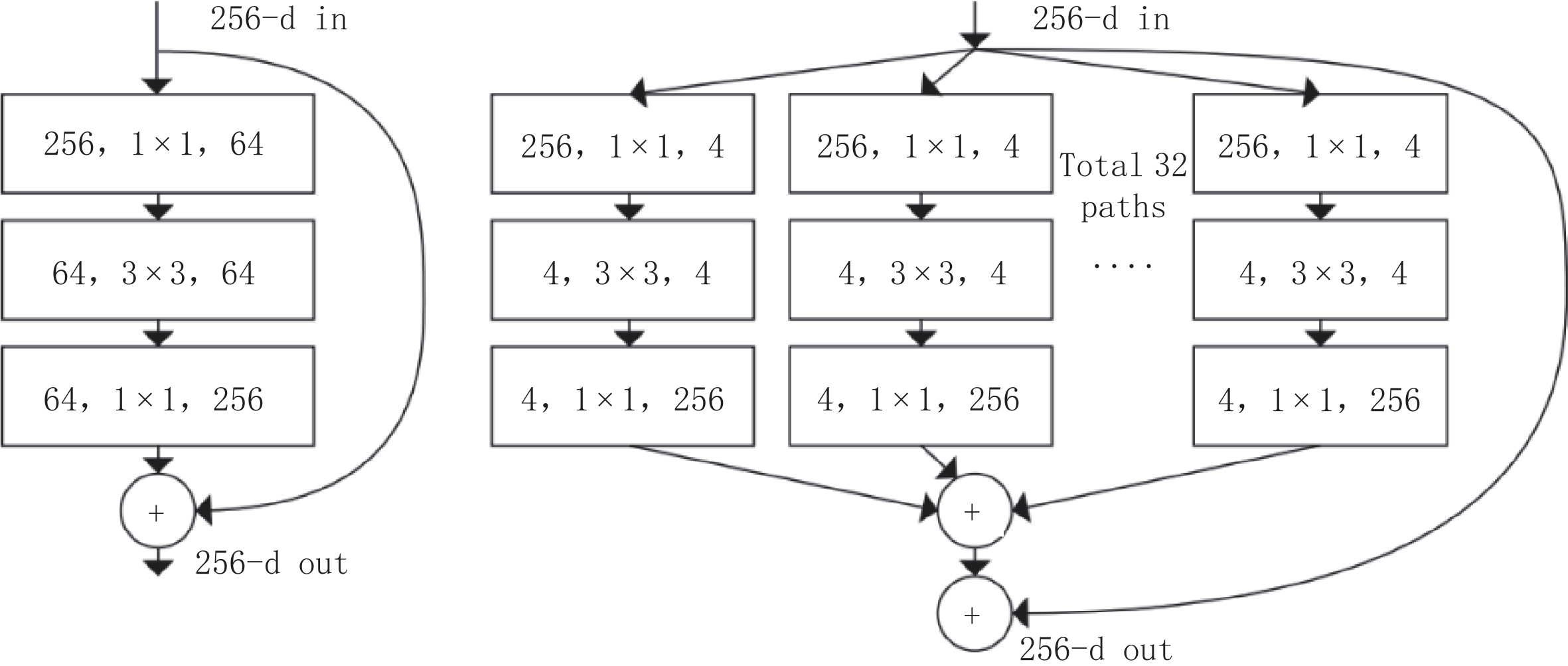

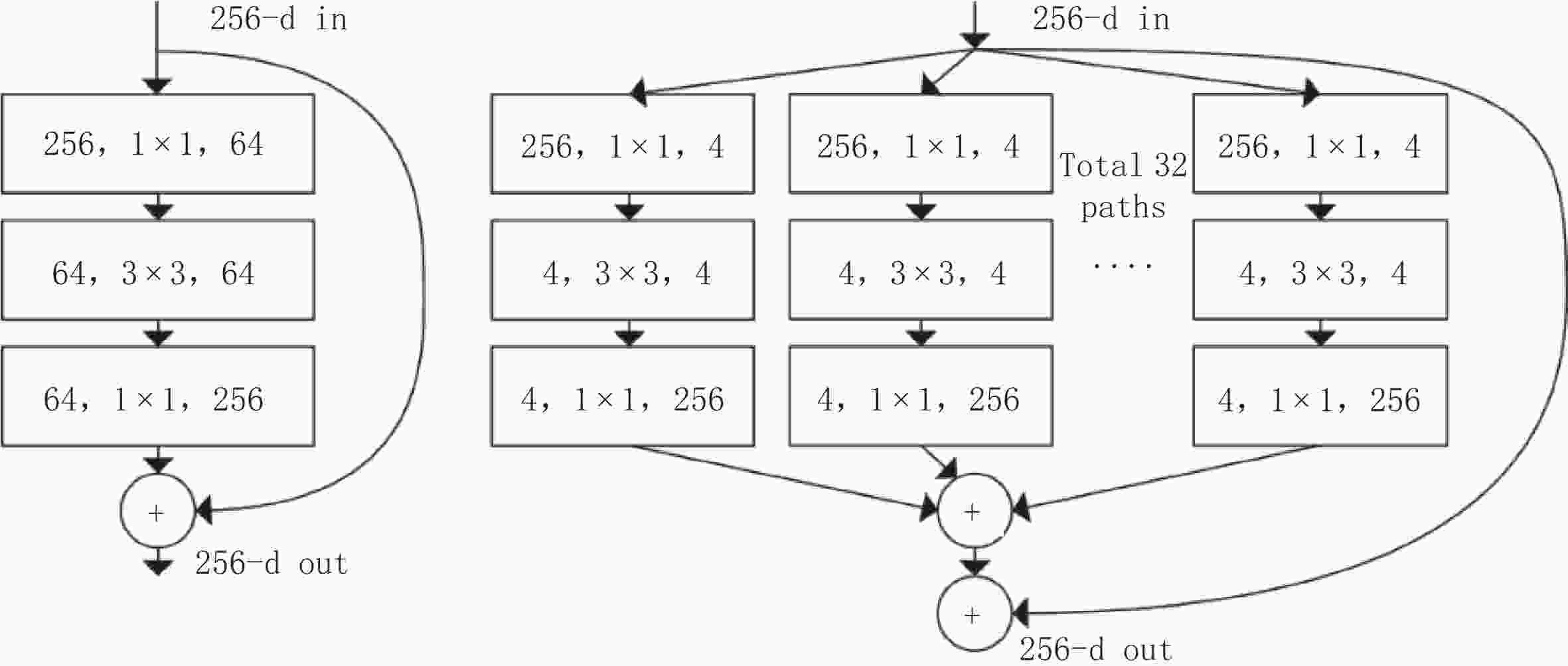

    图  3  (a)ResNet的一个构建块;(b)基数为32的ResNext构建块[7]

    Figure  3.  (a) A building block of ResNet; (b) ResNext building block with 32 cardinality[7]

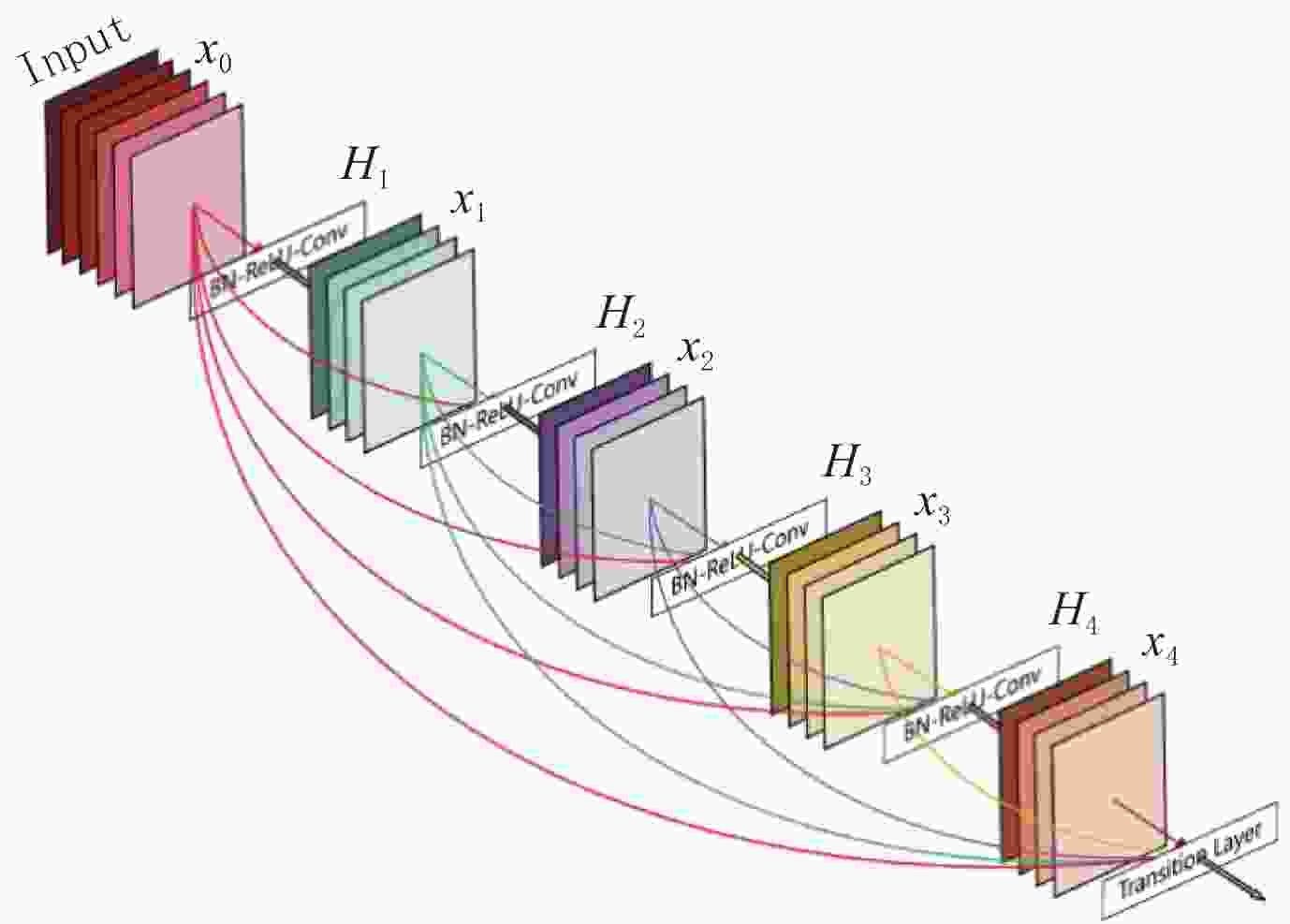

    图  4  DenseNet连接示意图[8]

    Figure  4.  DenseNet connection diagram[8]

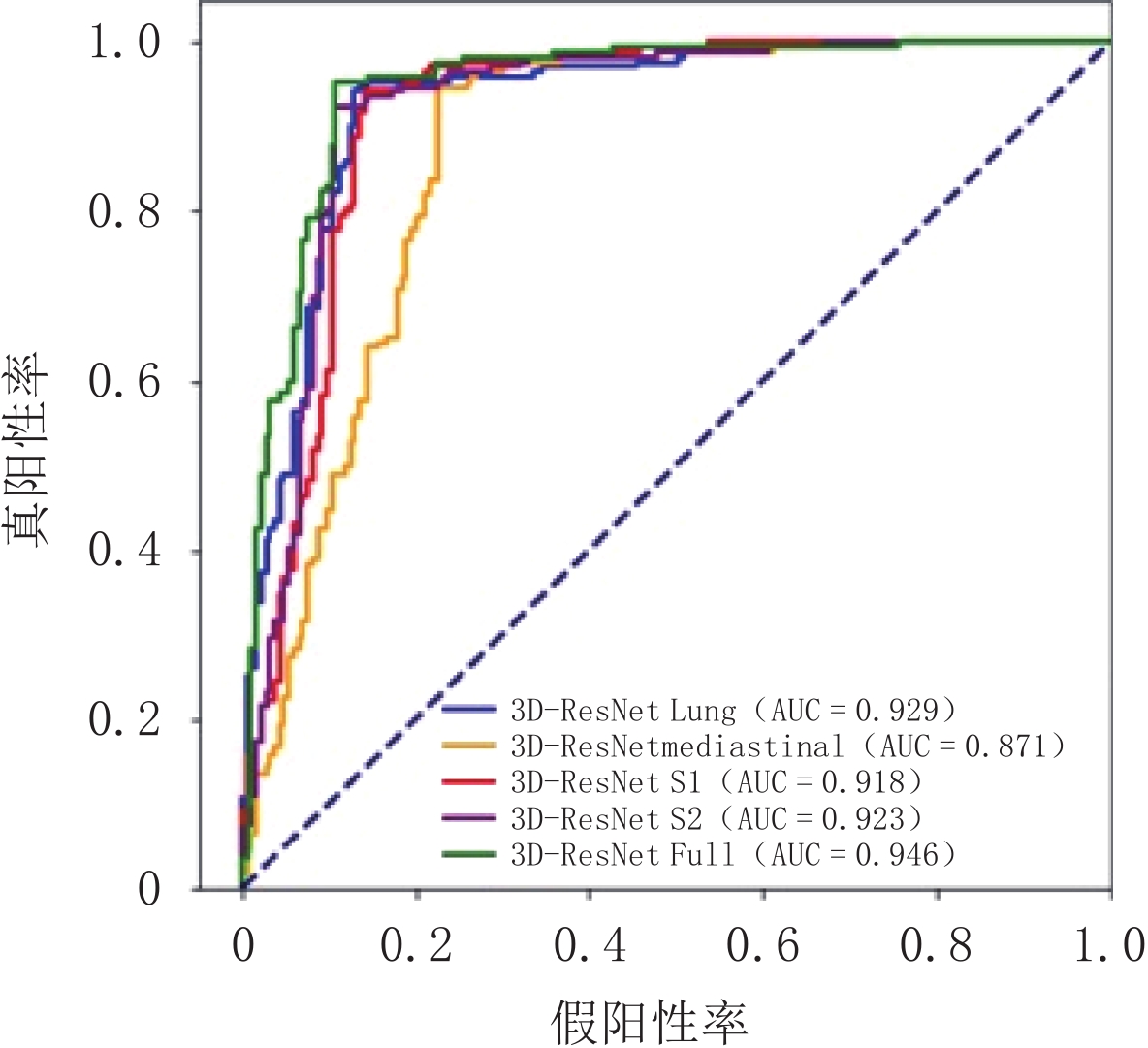

    图  5  ResNet 5个窗口设置的ROC曲线图

    Figure  5.  ROC curve of ResNet

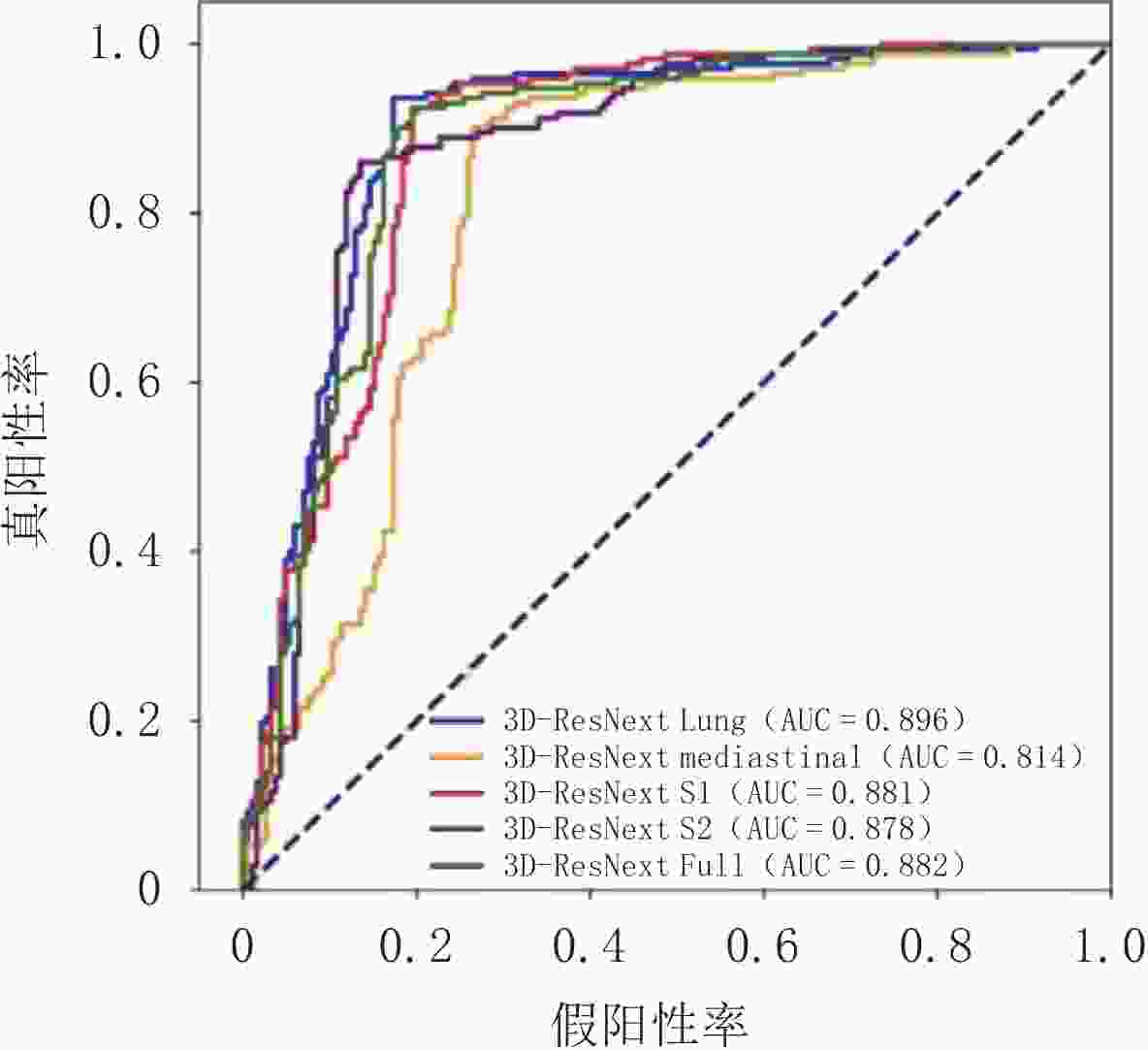

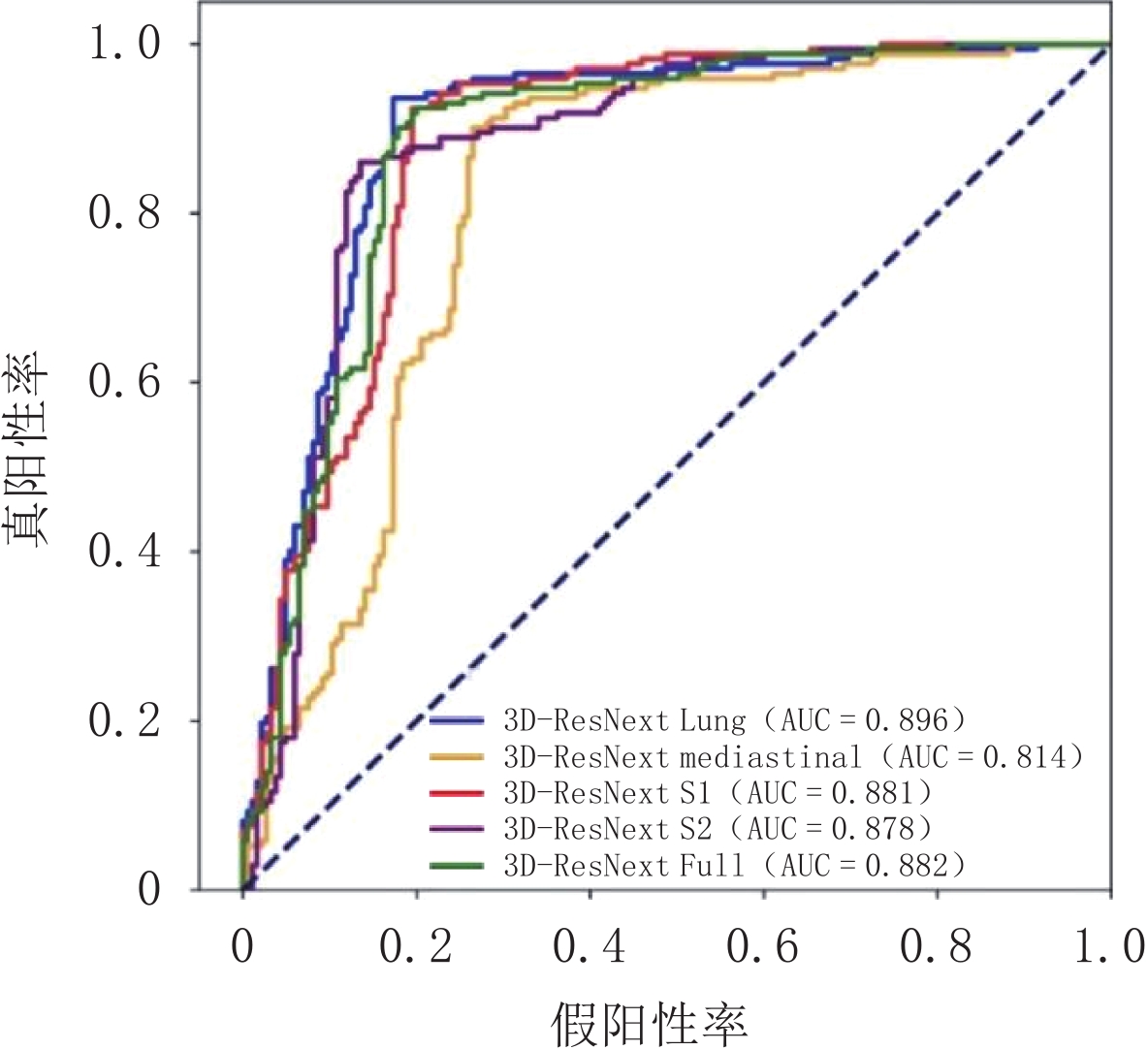

    图  6  ResNext 5个窗口设置的ROC曲线图

    Figure  6.  ROC curve of ResNext

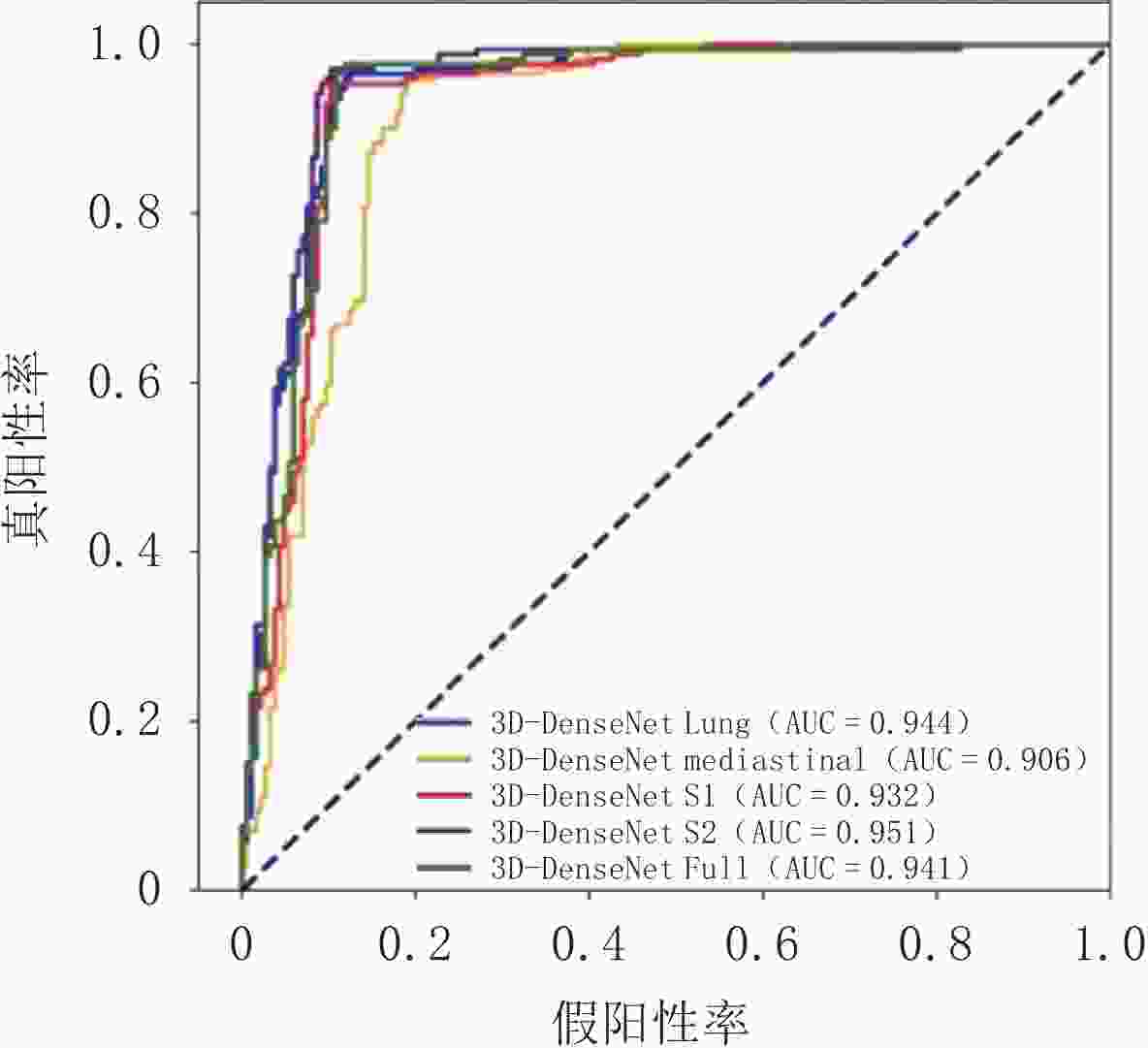

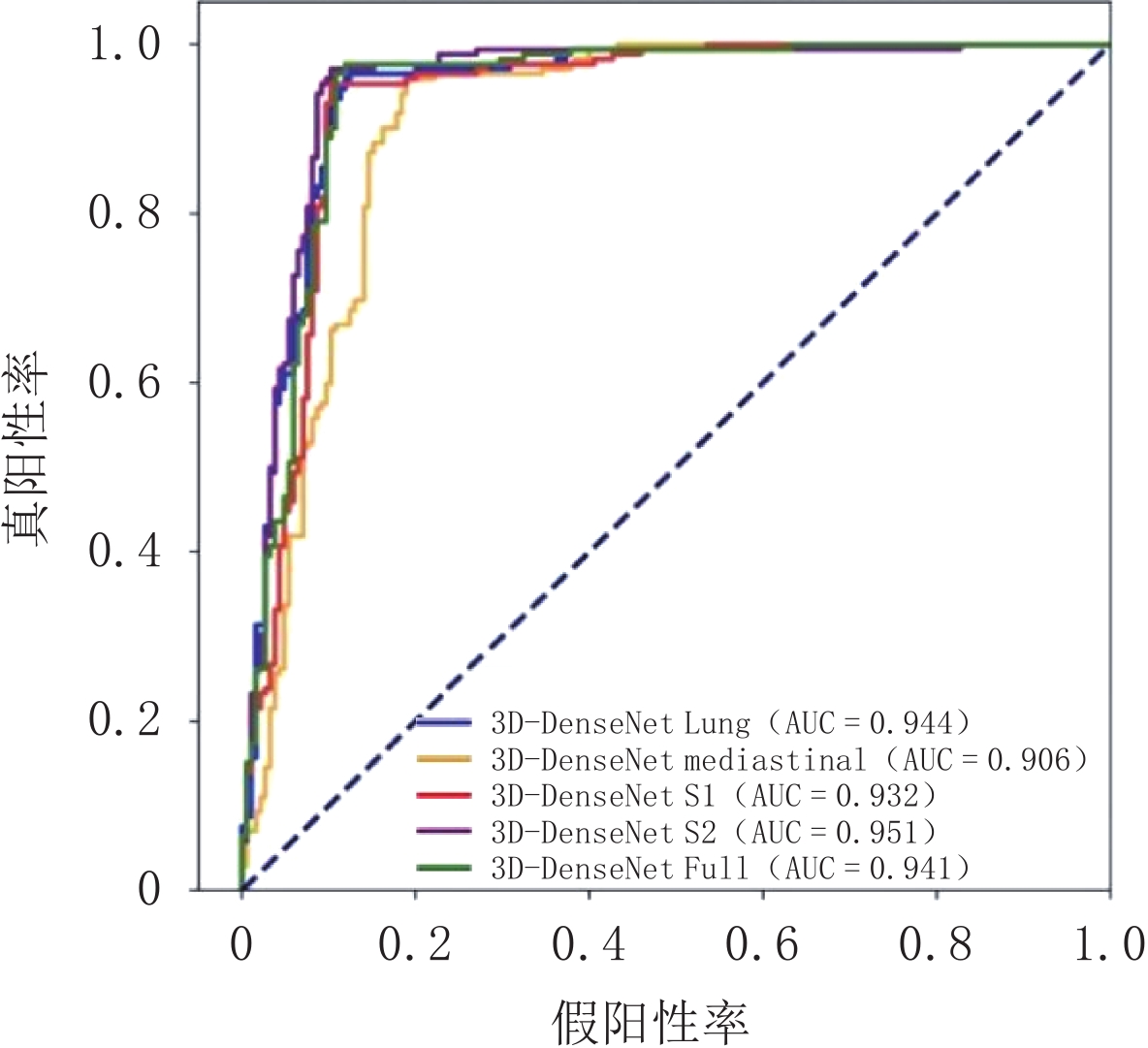

    图  7  DenseNet 5个窗口设置的ROC曲线图

    Figure  7.  ROC curve of DenseNet

    表  1  ResNet 5个窗口设置的5倍交叉验证的分类准确率(%)及AUC结果

    Table  1.   Classification accuracy (%) and AUC results of 5-fold cross validation of 5 window settings in ResNet

    窗口(WW,WL)Fold 1Fold 2Fold 3Fold 4Fold 5平均分类准确率/%AUC
      肺窗 (1500,−600)87.5088.7391.5591.5593.0690.4780.929
      纵隔窗 (350,40)80.5687.3290.1485.9284.7285.7320.871
      SW1 (1000,40)86.1192.9688.7391.5590.2889.9260.918
      SW2 (1000,−100)87.5092.9690.1491.5590.2890.4860.923
      Full (4096,1024)87.5090.1490.1494.3795.8391.5960.946
    下载: 导出CSV

    表  2  ResNext 5个窗口设置的5倍交叉验证的分类准确率(%)及AUC结果

    Table  2.   Classification accuracy (%) and AUC results of 5-fold cross validation of 5 window settings in ResNext

    窗口(WW,WL)Fold 1Fold 2Fold 3Fold 4Fold 5平均分类准确率/%AUC
      肺窗 (1500,−600)84.7280.1487.3288.7387.5085.6820.896
      纵隔窗 (350,40)77.7883.1081.6984.5180.5681.5280.814
      SW1 (1000,40)86.1185.9288.7385.9284.7286.2800.881
      SW2 (1000,−100)84.7288.7383.1085.9287.5085.9940.878
      Full (4096,1024)83.3391.5585.9287.3284.7286.5680.882
    下载: 导出CSV

    表  3  DenseNet 5个窗口设置的5倍交叉验证的分类准确率(%)及AUC结果

    Table  3.   Classification accuracy (%) and AUC results of 5-fold cross validation of 5 window settings in DenseNet

    窗口(WW,WL)Fold 1Fold 2Fold 3Fold 4Fold 5平均分类准确率/%AUC
      肺窗 (1500,−600)87.5091.5592.9694.3793.0691.8880.944
      纵隔窗 (350,40)88.8987.3291.5584.5187.5087.9540.906
      SW1 (1000,40)94.4494.3790.1490.1493.0692.4300.932
      SW2 (1000,−100)93.0695.7791.5591.5594.4493.2740.951
      Full (4096,1024)91.6792.9690.1494.3794.4492.7160.941
    下载: 导出CSV
  • [1] Van GINNEKEN B. Fifty years of computer analysis in chest imaging: Rule-based, machine learning, deep learning[J]. Radiological Physics and Technology, 2017, 10(1): 23−32. doi: 10.1007/s12194-017-0394-5
    [2] YU X, LU S, GUO L, et al. ResGNet-C: A graph convolutional neural network for detection of COVID-19[J]. Neurocomputing, 2021, 452: 592−605. doi: 10.1016/j.neucom.2020.07.144
    [3] LEE S M, SEO J B, YUN J, et al. Deep learning applications in chest radiography and computed tomography: Current state of the art[J]. Journal of Thoracic Imaging, 2019, 34(2): 75−85. doi: 10.1097/RTI.0000000000000387
    [4] SHIN H C, ROTH H R, GAO M, et al. Deep convolutional neural networks for computer-aided detection: CNN architectures, dataset characteristics and transfer learning[J]. IEEE Transactions on Medical Imaging, 2016, 35(5): 1285−1298.
    [5] KANG G, LIU K, HOU B, et al. 3D multi-view convolutional neural networks for lung nodule classification[J]. Plos One, 2017, 12(11): 12−22.
    [6] CHENG X, WEN H, YOU H, et al. Recognition of peripheral lung cancer and focal pneumonia on chest computed tomography images based on convolutional neural network[J]. Technology in Cancer Research & Treatment, 2022, 21: 1-12.
    [7] XIE S, GIRSHICK R, DOLLÁR P, et al. Aggregated residual transformations for deep neural networks[C]//In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2017: 1492-1500.
    [8] HUANG G, LIU Z, Van der MAATEN L, et al. Densely connected convolutional networks[C]//In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2017: 4700-4708.
    [9] 田培林, 徐覃莎, 唐利荣, 等. 胸部CT检查的肺窗技术[J]. 生物医学工程与临床, 2002,6(4): 209−213. doi: 10.3969/j.issn.1009-7090.2002.04.010

    TIAN P L, XU Q S, TANG L R, et al. Window techniques for pulmonary image in chest CT[J]. Biomedical Engineering and Clinical Medicine, 2002, 6(4): 209−213. (in Chinese). doi: 10.3969/j.issn.1009-7090.2002.04.010
    [10] 张胜超, 陈浩, 秦宣, 等. CT窗口技术在肺磨玻璃结节诊断中的临床意义[J]. 中国现代医学杂志, 2019,29(14): 106−109.

    ZHANG S C, CHEN H, QIN X, et al. Clinical significance of CT window technique in the diagnosis and treatment of pulmonary ground-glass nodules[J]. China Journal of Modern Medicine, 2019, 29(14): 106−109. (in Chinese).
    [11] KITAMI A, SANO F, HAYASHI S, et al. Correlation between histological invasiveness and the computed tomography value in pure ground-glass nodules[J]. Surgery Today, 2016, 46(5): 593−598. doi: 10.1007/s00595-015-1208-1
    [12] 张鹏, 徐欣楠, 王洪伟, 等. 基于深度学习的计算机辅助肺癌诊断方法[J]. 计算机辅助设计与图形学学报, 2018,30(1): 90−99.

    ZHANG P, XU X N, WANG H W, et al. Computer-aided lung cancer diagnosis approaches base on deep learning[J]. Journal of Computer-Aided Design & Computer Graphics, 2018, 30(1): 90−99. (in Chinese).
    [13] 尹柯, 张久权, 伍建林, 等. 对比卷积神经网络分类模型与放射科医师鉴别浸润性肺腺癌的效能[J]. 中国医学影像技术, 2021,37(9): 1338−1342.

    YIN K, ZHANG J Q, WU J L, et al. Comparison on convolutional neural network classification model and radiologists in differentiating invasive lung adenocarcinoma[J]. Chinese Journal of Medical Imaging Technology, 2021, 37(9): 1338−1342. (in Chinese).
    [14] 戴书华, 刘国芳, 向东生. 肺磨玻璃结节CT值测量在早期癌症诊断中的意义[J]. 中华肺部疾病杂志(电子版), 2019,12(6): 770−771.

    DAI S H, LIU G F, XIANG D S. The significance of CT value measurement of pulmonary ground glass nodule in early cancer diagnosis[J]. Chinese Journal of Lung Diseases Electronic Edition, 2019, 12(6): 770−771. (in Chinese).
    [15] HE S, CHEN C, WANG Z, et al. The use of the mean computed tomography value to predict the invasiveness of ground-glass nodules: A meta-analysis[J]. Asian Journal of Surgery, 2022, 18: 1-6.
