基于迭代残差网络的双能CT图像材料分解研究

王冲旭, 陈平, 潘晋孝, 刘宾

王冲旭, 陈平, 潘晋孝, 等. 基于迭代残差网络的双能CT图像材料分解研究[J]. CT理论与应用研究, 2022, 31(1): 47-54. DOI: 10.15953/j.1004-4140.2022.31.01.05.
引用本文: 王冲旭, 陈平, 潘晋孝, 等. 基于迭代残差网络的双能CT图像材料分解研究[J]. CT理论与应用研究, 2022, 31(1): 47-54. DOI: 10.15953/j.1004-4140.2022.31.01.05.
WHANG C X, CHEN P, PAN J X, et al. Research on material decomposition of dual-energy CT image based on iterative residual network[J]. CT Theory and Applications, 2022, 31(1): 47-54. DOI: 10.15953/j.1004-4140.2022.31.01.05. (in Chinese).
Citation: WHANG C X, CHEN P, PAN J X, et al. Research on material decomposition of dual-energy CT image based on iterative residual network[J]. CT Theory and Applications, 2022, 31(1): 47-54. DOI: 10.15953/j.1004-4140.2022.31.01.05. (in Chinese).

基于迭代残差网络的双能CT图像材料分解研究

基金项目: 国家自然科学基金(面向金属基复合材料微结构表征的X射线多谱CT成像方法研究(61801437);基于深度学习的递变能量多谱CT成像表征方法研究(61871351);基于深度学习的低剂量CT重建与影像识别(61971381))。
详细信息
    作者简介:

    王冲旭: 男,中北大学硕士研究生,主要从事X射线成像、双能材料分解方面的研究,E-mail:1162391239@qq.com

    陈平: 男,中北大信息与通信工程学院教授,主要从事X射线成像、光电检测等方面的研究,E-mail:pc0912@163.com

  • 中图分类号: TP 391

Research on Material Decomposition of Dual-energy CT Image Based on Iterative Residual Network

  • 摘要:

    双能计算机断层成像技术(DECT)由于其材料分解能力,在高级成像应用中发挥着重要作用。图像域分解直接对CT图像进行线性矩阵反演,但分解后的材料图像会受到噪声和伪影的严重影响。虽然各种正则化方法被提出来解决这个问题,但它们仍然面临着两个挑战: 繁琐的参数调整和过度平滑导致的图像细节损失。为此,本文提出一种基于迭代残差网络的双能CT图像材料分解算法,直接求逆作为初始基图像,利用堆叠的双通道卷积神经网络替换迭代分解模型中的正则化项,构成深度迭代分解网络,该方法同时实现了材料分解和噪声抑制。实验结果表明,本文提出的迭代残差网络优于其他对比方法,能够在保持基图像边缘细节信息的同时有效抑制噪声和伪影。

    Abstract:

    Dual energy computed tomography (DECT) plays an important role in the application of advanced imaging due to its material decomposition capability. Image domain decomposition can directly invert CT images through by linear matrix, but the decomposed material images will be seriously affected by noise and artifacts. Although various regularization methods have been proposed to solve this problem, they still face two challenges: tedious parameter adjustment and the loss of image details resulted from over-smoothing. Therefore, in this paper we proposes a dual energy CT image material decomposition algorithm based on iterative residual network. Direct inversion is used as the initial base image, and a stacking two-channel convolutional neural network is used to replace the regularization items in the iterative decomposition model to form a deep iterative decomposition network. This method can realize material decomposition and noise suppression simultaneously. Experimental results show that the iterative residual network proposed in this paper is superior to other comparison methods and can effectively suppress noise and artifacts while maintaining the edge details of the base image.

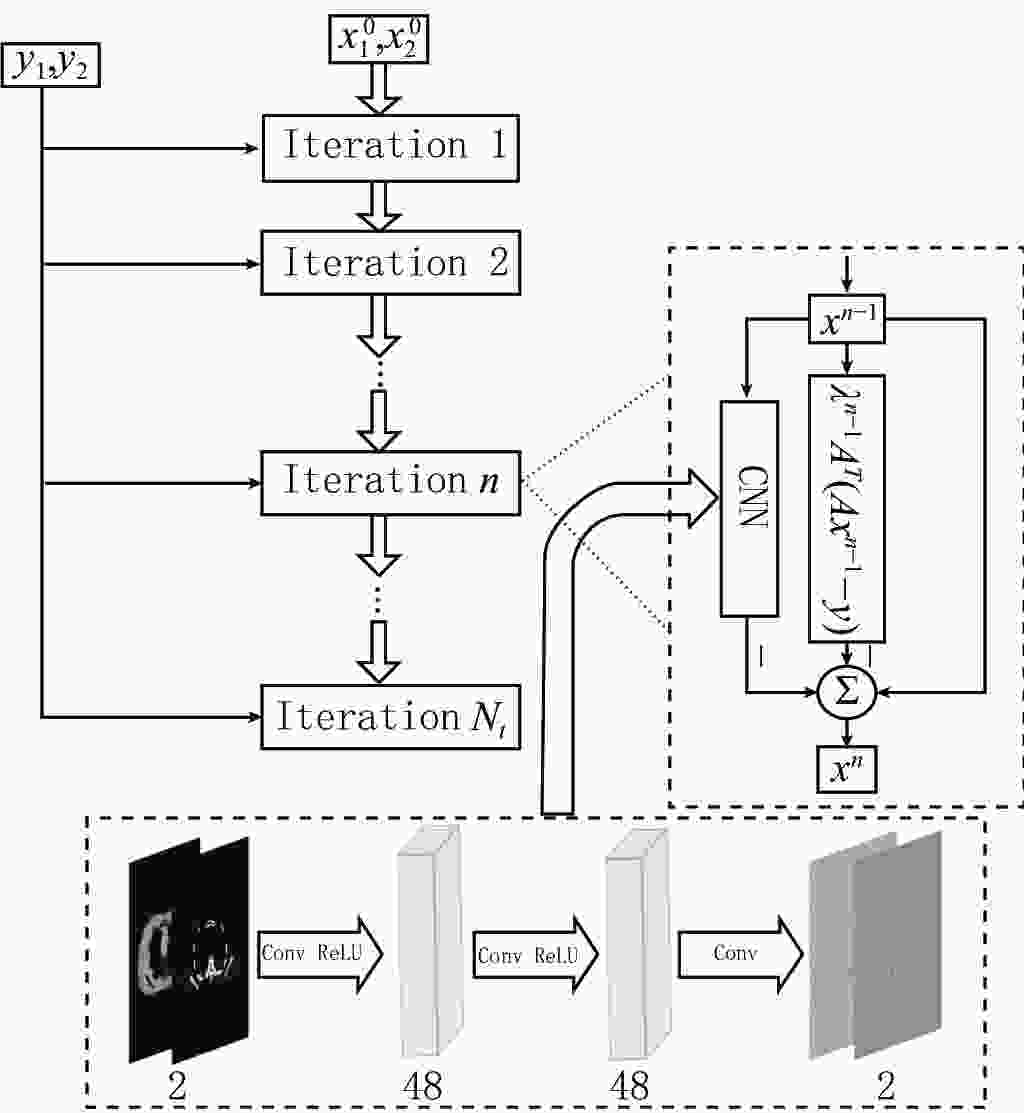

  • 图  1   IR-Net网络模型框架

    Figure  1.   Overall structure of IR-Net

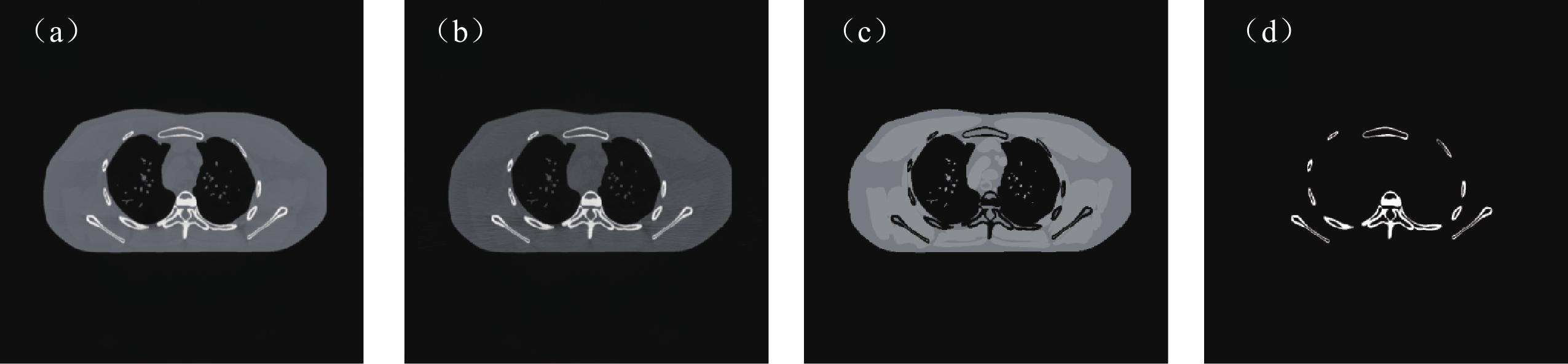

    图  2   网络数据集的示例

    (a)和(b)分别显示高能量和低能量下的重建图像;(c)和(d)显示测试切片的真实的水和骨的材料密度图像。

    Figure  2.   Example of the network dataset

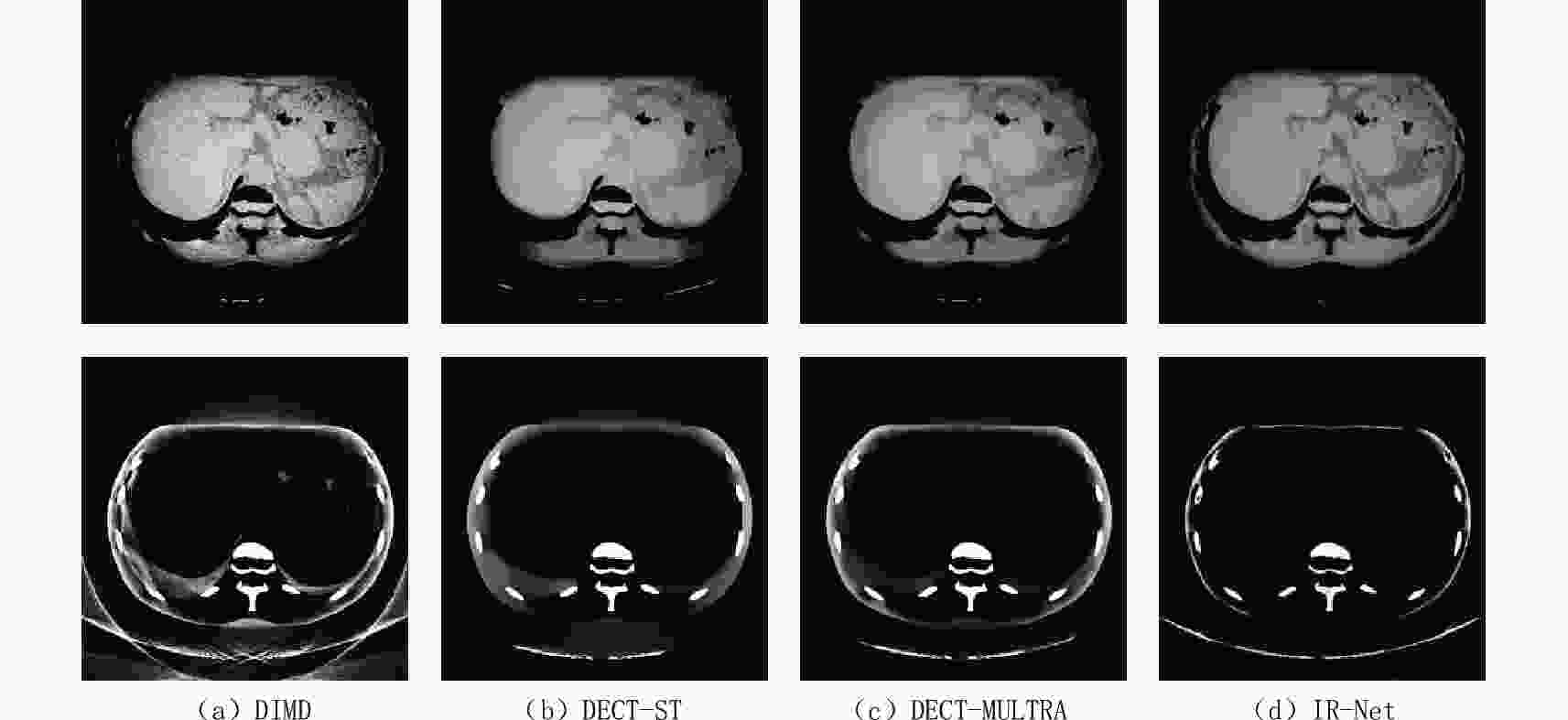

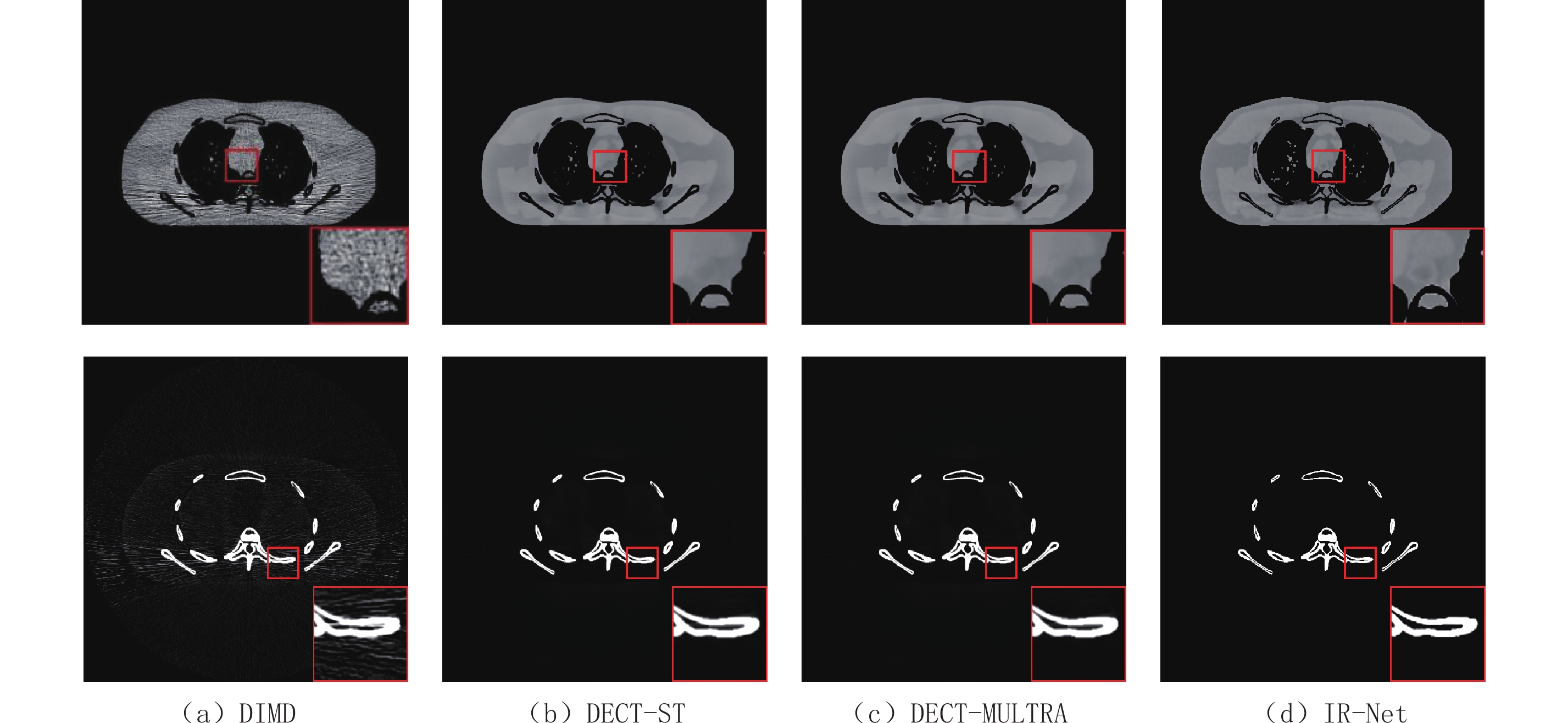

    图  3   DIMD、DECT-ST、DECT-MULTRA和IR-Net的材料分解结果

    Figure  3.   Basis material images decomposed by DIMD, DECT-ST, DECT-MULTRA, and IR-Net

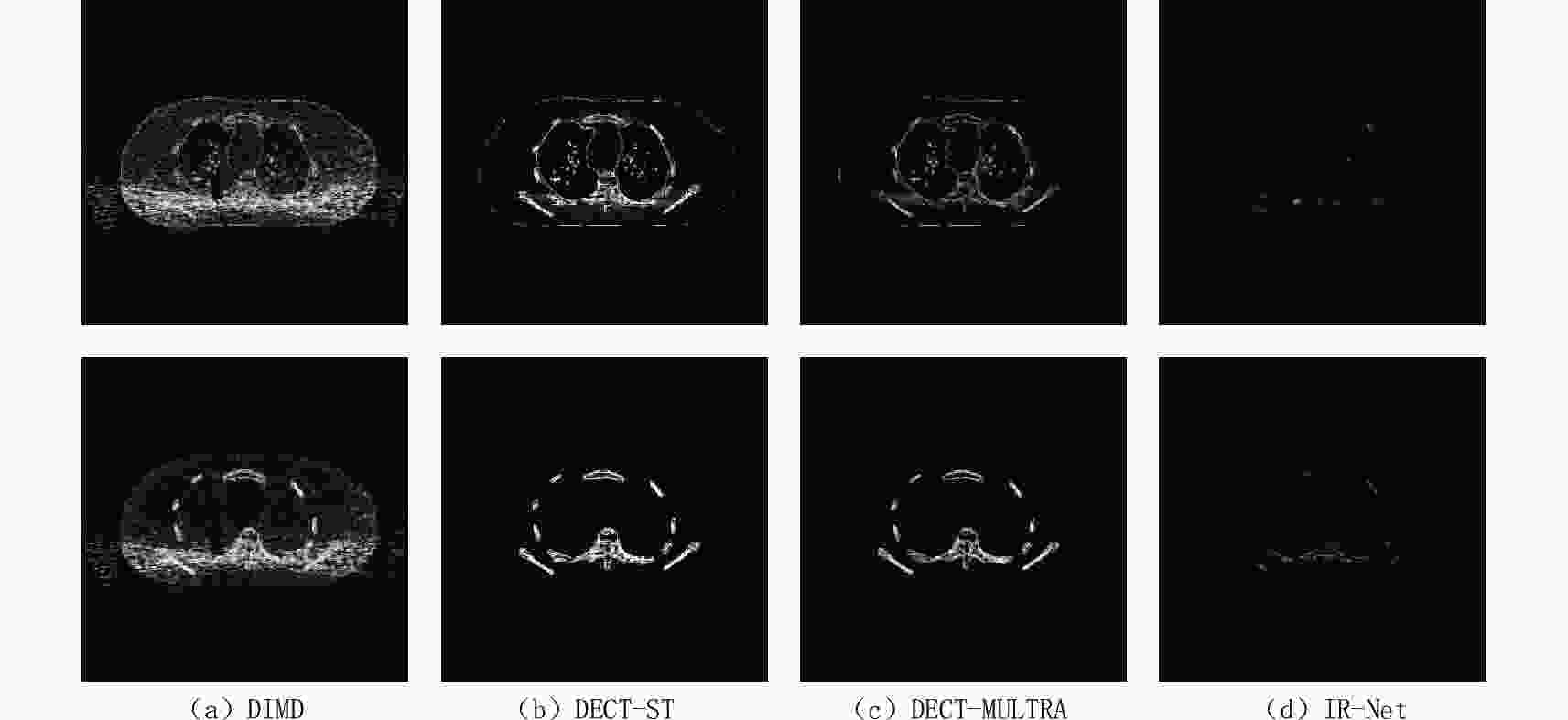

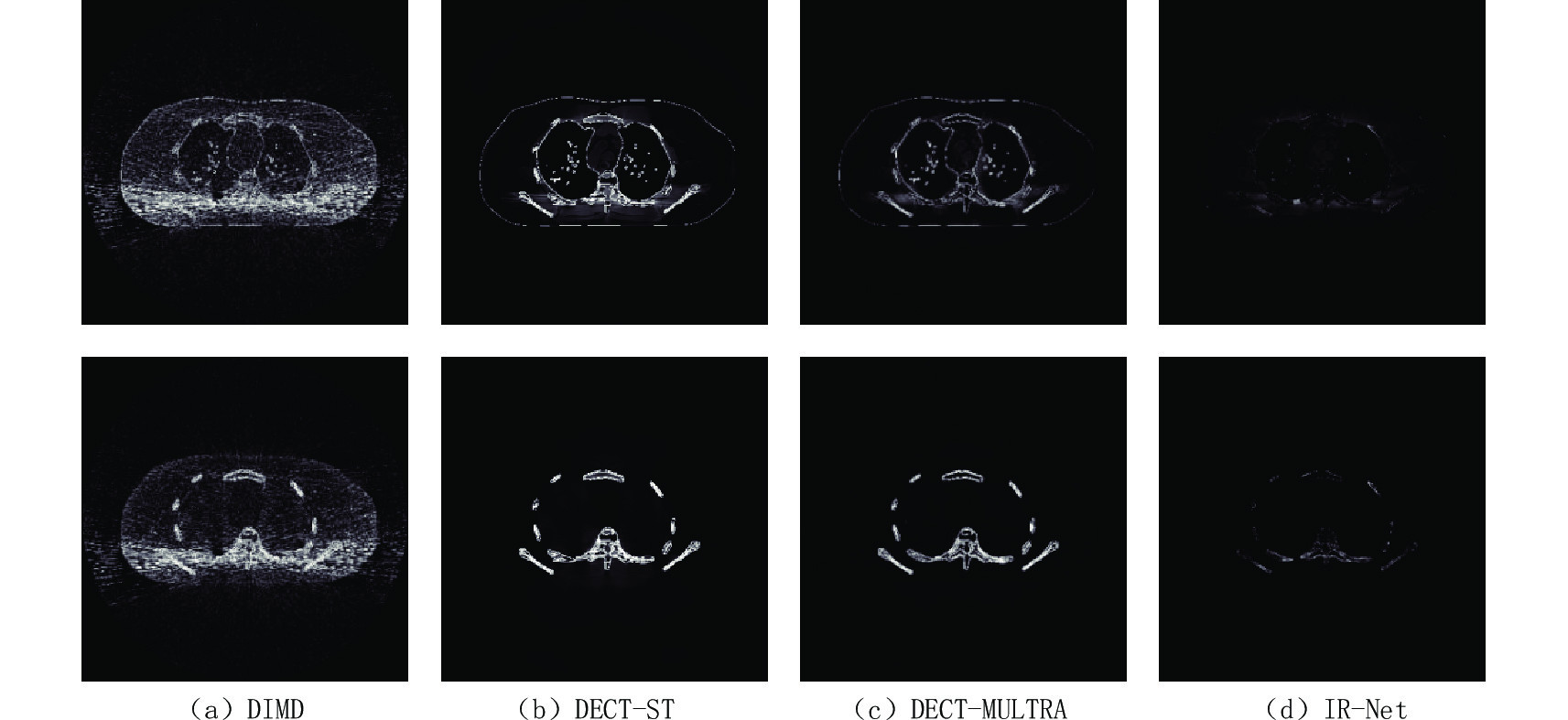

    图  4   DIMD、DECT-ST、DECT-EP和IR-Net与标签之前差值的绝对值

    Figure  4.   Images of absolute value of difference between ground truths and decomposed material images by DIMD, DECT-ST, DECT-MULTRA, and IR-Net

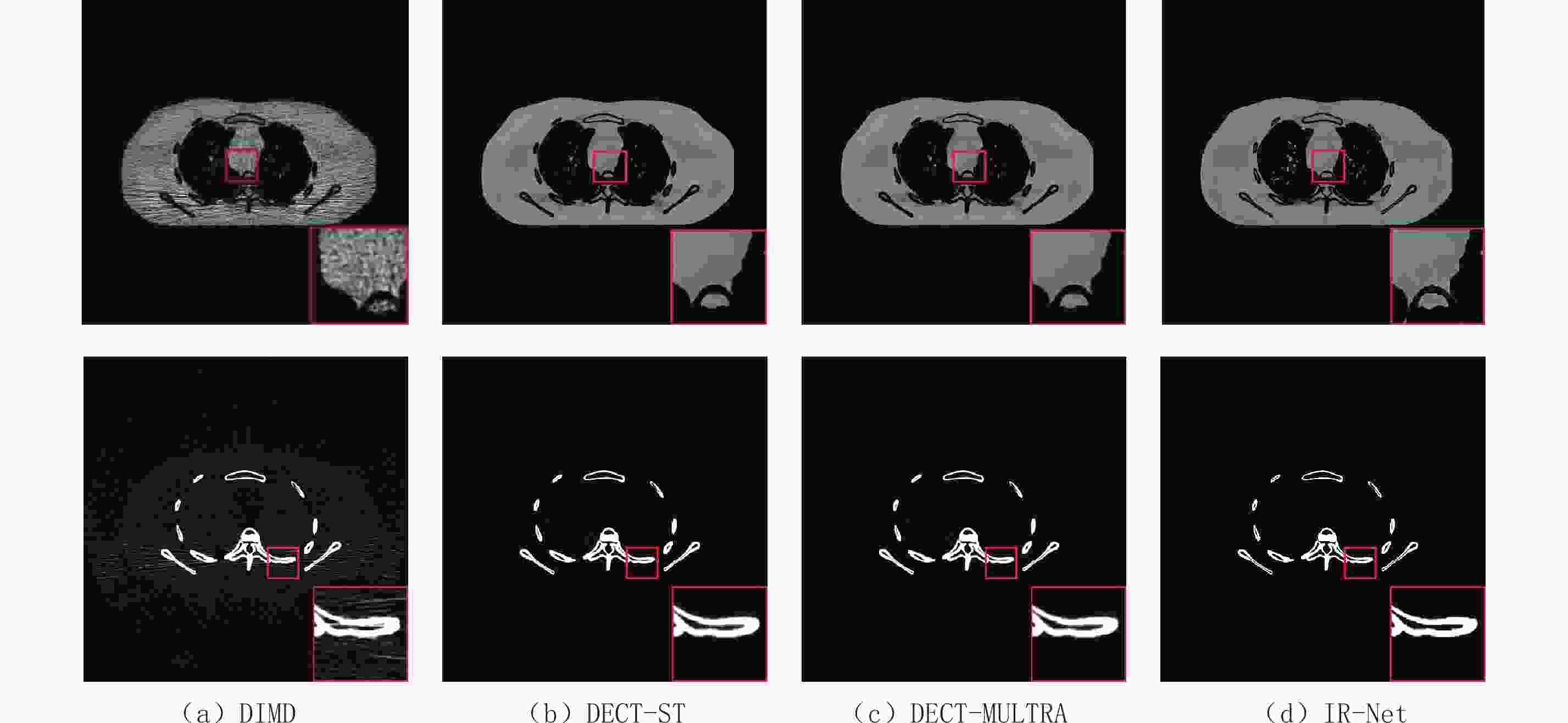

    图  5   DIMD、DECT-ST、DECT-MULTRA和IR-Net的材料分解结果
